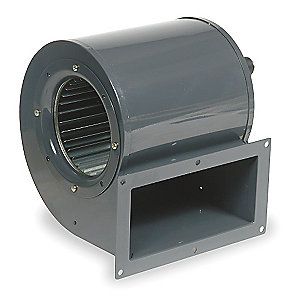

Compatible with Dayton 1TDR9

Taylor T-2000 and T-3000

Shaded Pole Blower, Air Flow @ 0.000 Inch Static Pressure 465 CFM, RPM 1600

For a diagram for the dimensions below please click to pictures 2 and 3 above.

• Wheel Dia. (In.)5-1/8
• Wheel Width (In.)7
• Inlet Dia. (In.)4-9/16
• Outlet Height (In.)3-1/2
• Outlet Width (In.)7-13/16
• Overall Height (In.)9-3/8
• Overall Width (In.)9-3/16
• Overall Depth (In.)8-9/16
• Dimension A (In.)8-9/16
• Dimension B (In.)10-1/2
• Dimension C (In.)9-3/16
• Dimension D (In.)8-3/16
• Dimension E (In.)9-3/8
• Dimension F (In.)3-5/16
• Dimension J (In.)9-7/16
• Dimension K (In.)5
• Dimension L (In.)8-13/16
• Dimension M (In.)4-3/8
