Compatible with 4C012 and Dayton 1TDN5

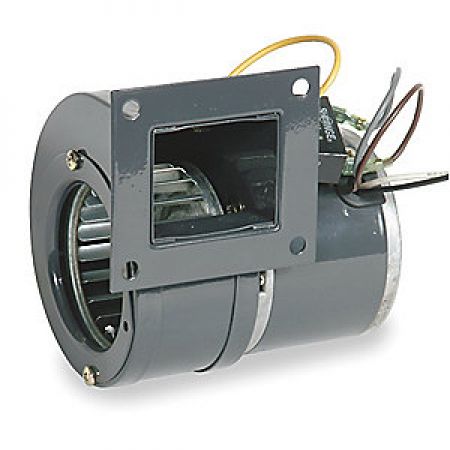

Shaded Pole Blower,  53 CFM, RPM 3388

Voltage Rating 115 Volts, Current Rating 0.30 Amp, Frequency 50/60 Hertz

For a diagram for the dimensions below please click to pictures 2 and 3 above.

• Wheel Width (In.)1-1/2
• Inlet Diameter (In.)2-9/16
• Outlet Height (In.)1-5/8
• Outlet Width (In.)2
• Dimension A (In.)4-1/2
• Dimension B (In.)5-5/16
• Dimension C (In.)4-11/16
• Dimension D (In.)2-1/8
• Dimension E (In.)4-5/8
• Dimension J (In.)3-7/16
• Dimension K (In.)3-1/8
• Dimension L (In.)2-13/16
• Dimension M (In.)2-7/16
