Compatible with Taylor T-1000

Ozark Biomass Gasconade and Osage models

or 4C447, 1TDR3

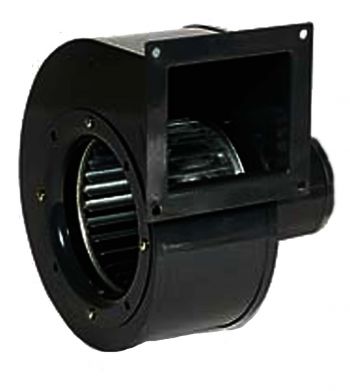

Shaded Pole Blower, Air Flow @ 0.000 Inch Static Pressure 265 CFM, RPM 1610

For a diagram for the dimensions below please click to pictures 2 and 3 above.

• Inlet Dia. (In.)4-5/8
• Outlet Height (In.)3-11/16
• Outlet Width (In.)4-1/8
• Overall Height (In.)9-7/8
• Overall Width (In.)7-9/16
• Overall Depth (In.)8-7/8
• Dimension A (In.)8-7/8
• Dimension B (In.)9-7/8
• Dimension C (In.)7-9/16
• Dimension D (In.)4-3/16
• Dimension E (In.)10-7/8
• Dimension F (In.)3-5/16
• Dimension J (In.)5-1/2
• Dimension K (In.)5
• Dimension L (In.)4-7/8
• Dimension M (In.)4-3/8
