Compatible with 4C446 or 1TDP7 Taylor® 500CB &  T-750 For Legend® Models 4135, 4135a, 6180, 6180a, 4200, & 6245

Ozark BioMass™ Meramec & Gasconade with adapter plate not included

Conestoga® Champion; Freedom® Heatsource 1® 555, 1000; Heatmor® 400, 800,

Global Hydronics®; Hawken Energy ®, HeatMaster®, Pacific Western®, Johnson®,Central Boiler®

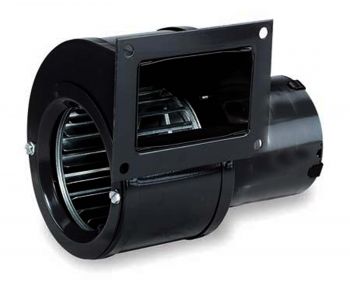

Shaded Pole Blower, Air Flow @ 0.000 Inch Static Pressure 148 CFM, RPM 3100 ,

Voltage Rating 115 Volts, Current Rating 1.37 Amps, Frequency 60/50 Hertz, Thermal Protection Auto

For a diagram for the dimensions below please click to pictures 2 and 3 above.

• Wheel Diameter (In.)3 13/16
• Wheel Width (In.)2 1/2
• Inlet Diameter (In.)3 1/8
• Outlet Height (In.)2-3/16
• Outlet Width (In.)3-1/4
• Dimension A (In.)5-3/8
• Dimension B (In.)6-3/8
• Dimension C (In.)6-5/16
• Dimension D (In.)3-5/16
• Dimension E (In.)5-3/4
• Dimension F (In.)3-5/16
• Dimension J (In.)4-5/8
• Dimension K (In.)3-1/2
• Dimension L (In.)4
• Dimension M (In.)2-7/8
