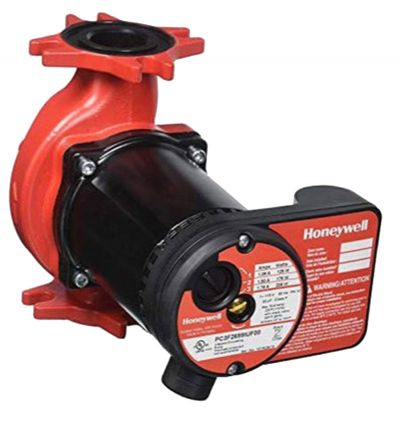

Honeywell Pump PC3F2699IUF00/U

APPLICATION

The PC3F in-line, wet rotor circulator with universal flange is designed for applications in closed-loop hydronic heating and cooling systems, as well as in solar-powered systems. The pump is non-submersible and for use in dry, frost-free, wellventilated installations.

SPECIFICATIONS

Control: 3-step switch with manual speed selection. Motor Protection: The motor includes an internal thermal overload protection. External motor protection is not required. Speed Switching: Three speed, with manual selector. Standards: Insulation Class F Temperature Class: TF95 Approvals: UL/cUL 778, File number 4MX8

VALVE MATERIALS

Casing: Cast Iron Motor Housing: Aluminum Impeller: PP GF50 Shaft: Ceramic O-Ring/Flange Gaskets: EPDM Rubber Bearings: Ceramic Bearings Plate: Stainless Steel Motor Cap: Stainless Steel

Max Delivery Head 19 FT

Max Volume Rate Flow 15 GPM
