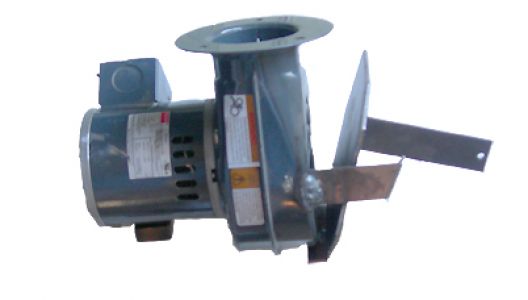

Mahoning Blower

Compatible with Mahoning models 100, 200, 300

Draft Fan with Damper

Connects with a round flange

Shaded Pole Blower, Air Flow @ 0.000 Inch Static Pressure 70 CFM, Speed 2870, RMP 3016

Voltage Rating 115 Volts, Current Rating 0.74 Amp, Frequency 60/50 Hertz, Thermal Protection Auto

For a diagram for the dimensions below please click to picture 2 above.

• Wheel Width (In.)1 7/8
• Inlet Diameter (In.)3 1/8
• Outlet Diameter (In.)2 1/8
• Dimension C (In.)6-1/4
• Dimension D (In.)2-1/4
• Dimension J (In.)4-1/16
• Dimension L (In.)2-3/8
• Dimension M (In.)2-13/16
