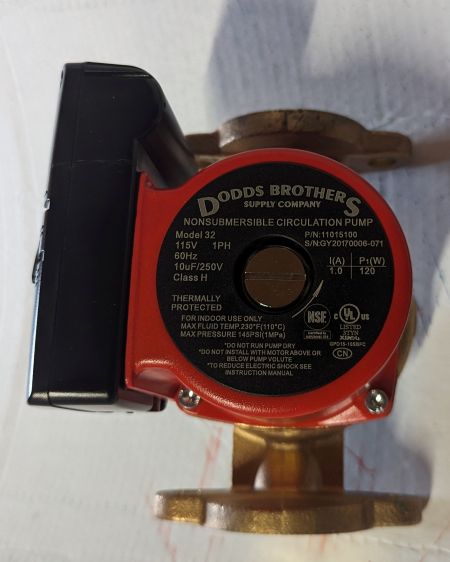

Dodds Brother Pump 32

    Dodds Brothers Supply Company offers Circulation pump Model 32
which is bronze pump housing, can be used for pumping potable water
(open-system) applications, and also can for ethylene glycol solutions
(closed-system) applications when water conditions are not compatible
with cast iron. The pump construction is of the wet rotor design, that is
pump housing and motor form an integral unit without shaft seal and with
only two gaskets for sealing. The bearings are lubricated by the pumped
liquid.
Features:
• Wet rotor design for low noise and Maintenance-Free
• Three speed control and compact design
• Ceramic shaft and radial bearings
• Carbon thrust bearing
• Stainless steel rotor can and bearing plate
• Impeller of corrosion-resistant material
• Pump housing of corrosion-resistant NSF-approved bronze material
• A high-flow check valve included and can be inserted in seconds when
installation calls
• Vent plug for initial purging if required
• 2-pole, asynchronous, squirrel-cage PSC (permanent split capacitor)
motor with UL approval, impedance protected requires no external motor
protection
• 2 gaskets included for pump housing
