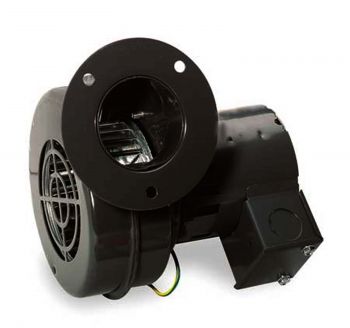

70 CFM Blower

Compatible with 4C443, 1TDP3 Dayton Taylor® T280, T450, Johnson® Shaver, Hicks

Shaded Pole Blower,  70 CFM, Speed 2870 , RPM 3016

Voltage Rating 115 Volts, Current Rating 0.74 Amp, Frequency 60/50 Hertz, Thermal Protection Auto,

For a diagram for the dimensions below please click to pictures 2 and 3 above.

• Wheel Width (In.)1 7/8
• Inlet Diameter (In.)3 1/8
• Outlet Diameter (In.)2 1/8
• Dimension A (In.)6-7/16
• Dimension B (In.)6-1/2
• Dimension C (In.)6-1/4
• Dimension D (In.)2-1/4
• Dimension E (In.)5-3/4
• Dimension J (In.)4-1/16
• Dimension L (In.)2-3/8
• Dimension M (In.)2-13/16
