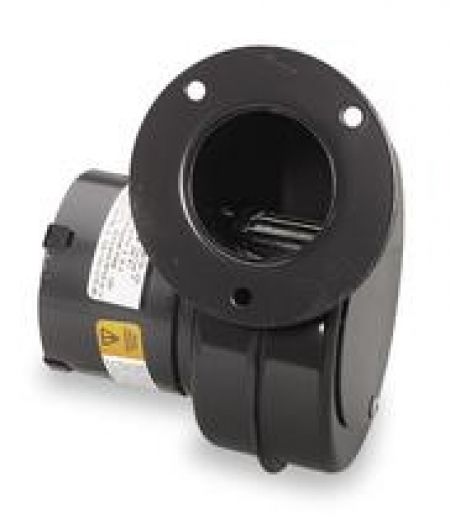

Part# DB4C440

Discounts Apply !
5% Off

Compatible with 4C440, 1TDN7 Dayton,

Technical Specs

  • Blower Outlet Shape Round
  • With Flange Yes
  • Blower Wheel Diameter 3"
  • Blower Wheel Width 1-7/8"
  • Blower Voltage 115VAC
  • Blower Conduit Box Yes
  • CFM @ 0.000-In. SP 50
  • CFM @ 0.100-In. SP 48
  • CFM @ 0.200-In. SP 44
  • CFM @ 0.300-In. SP 39
  • CFM @ 0.400-In. SP 32
  • CFM @ 0.500-In. SP 18
  • Hz 50/60
  • RPM 3036
  • Bearing Type Ball
  • Motor Enclosure Open
  • Max. Ambient Temp. 104 Degrees F
  • Max. Inlet Temp. 104 Degrees
  • Wheel Type Forward Curve
  • Drive Type Direct
  • Mounting Position All Position
  • Housing Material Rolled Steel
  • Includes Discharge Mounting Flange and Inlet Cover

For a diagram for the dimensions below please click to pictures 2 and 3 above.

  • Wheel Dia. (In.)3
  • Wheel Width (In.)1-7/8
  • Inlet Dia. (In.)2-3/8
  • Outlet Dia. (In.)2-1/8
  • Overall Height (In.)5-13/16
  • Overall Width (In.)5-1/8
  • Overall Depth (In.)6-7/16
  • Dimension A (In.)6-7/16
  • Dimension B (In.)6-1/2
  • Dimension C (In.)5-1/16
  • Dimension D (In.)2-1/4
  • Dimension E (In.)5-13/16
  • Dimension F (In.)3-5/16
  • Dimension J (In.)4-1/16
  • Dimension L (In.)2-3/8
  • Dimension M (In.)2-13/16
$85.00
Quantity:
Add to cart
