Part # SMART3000

Discounts Apply !

5% Off

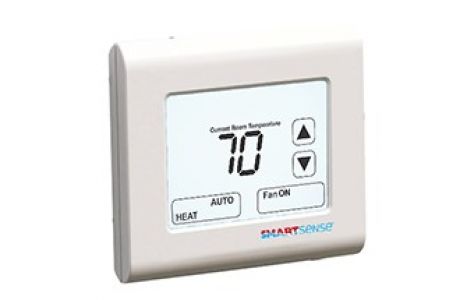

SMART 3000

Smart Thermostats

The SmartSense^® SMART 3000 Touchscreen Thermostat provides a total solution for residential heating and cooling control. The SMART 3000 is easy-to-use and install, and can be combined with multiple sensors and Wi-Fi module options to extend its capabilities.

Features and Benefits

1 Heat / 1 Cool
Intuitive operation
Touchscreen with bright white backlight
Single or three fan speed control
Easy-to-use commercial applications
Wi-Fi, remote and occupancy sensor options
Passive InfraRed (PIR), door and window inputs
Relay and 0-10V equipment control logic outputs
Heat/Cool or heat pump (O/B) logic
Integrated modbus communications
Integrated temperature sensor
Door bell function
Extensive Installer Options Menu
Temperature control limits
Auto off timer
Deadband adjustment
Fan purge period
Backlight level
24V AC powered with memory back-up
Volt free (clean contact) relays to 158°F (-40°C to 70°C)

Series Application	Touchscreen Digital Programmable
Power	24V AC ±20% 50/60 Hz
Relay Outputs	6 Relays - Fan Low/Med/Hi/Heat/Cool
Analog Outputs	Heat/Cool Fan
Tough Method	"XY" Resistive
Backlight Life	40,000 hours to half brightness
Operating Temperature	23°F to 77°F (-5°C to 50°C)
Operating RH	0 - 95% (Noncondensing)
Relay Voltage	24V AC @ 1 Amp Max
Communications	Modbus RTU 4.8/9.6/19.2/38.4k
Size	4.44"x 4.05" x 0.98" (113mm X 103mm X 26mm)
Timer Accuracy	+/-2.5 minutes per year
Sensor Accuracy	+/-1°F at 77°F (+/1°C at 25°C)
0 - 10V Output	5mA Max

$72.75
