Compatible with 4C442, 1TDP5

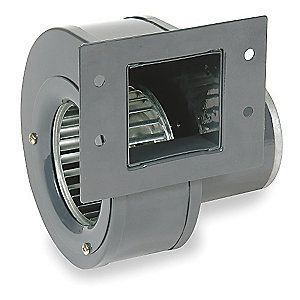

140 CFM Blower

For a diagram for the dimensions below please click to pictures 2 and 3 above.

• Wheel Dia. (In.)3-3/4
• Wheel Width (In.)1-7/8
• Outlet Height (In.)2-1/2
• Outlet Width (In.)2-1/2
• Overall Height (In.)6-11/16
• Overall Width (In.)5-5/8
• Overall Depth (In.)6-9/16
• Dimension A (In.)6-9/16
• Dimension B (In.)7-1/4
• Dimension C (In.)5-5/8
• Dimension D (In.)2-5/8
• Dimension E (In.)6-9/16
• Dimension F (In.)3-5/16
• Dimension J (In.)5-1/8
• Dimension K (In.)4
• Dimension L (In.)4-1/8
• Dimension M (In.)1-1/2
